I had been wanting to install rod holders in front of me for catfish and striper fishing, but I couldn't commit to drilling the holes because I was nervous I would put them too far or too close. Upon seeing the new 2010 boats with the slidetracks I knew I had to homebrew a way to copy the idea.

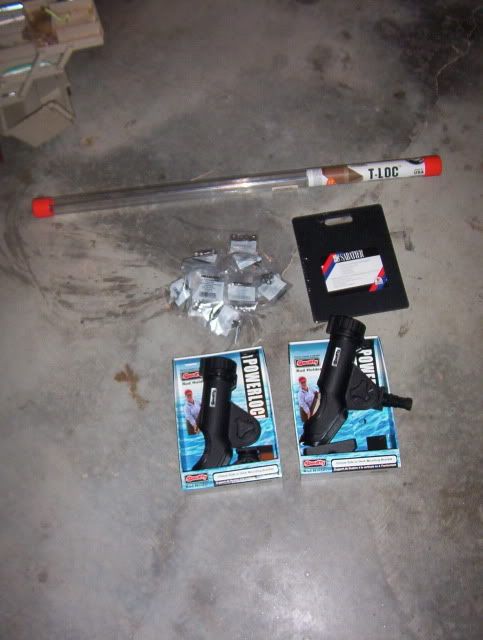

Here is what I started with: 2 scotty rod holders, plastic cutting board from Lowes, assorted stainless hardware, can of paint and primer (not pictured) and a Bench Dog T-Loc accessory track available at Klingspor Woodworking Store.
![Image]()

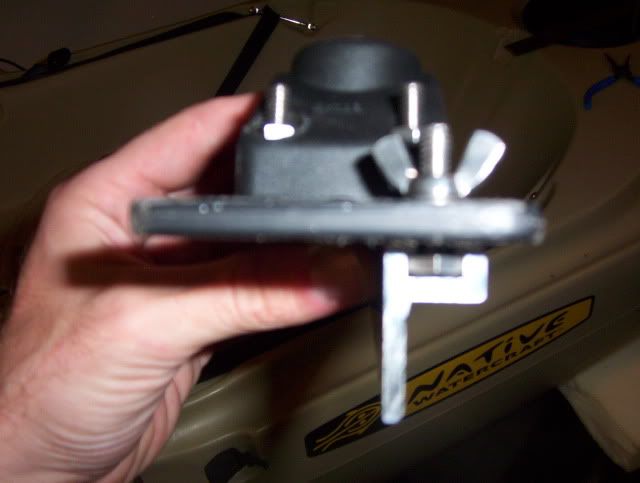

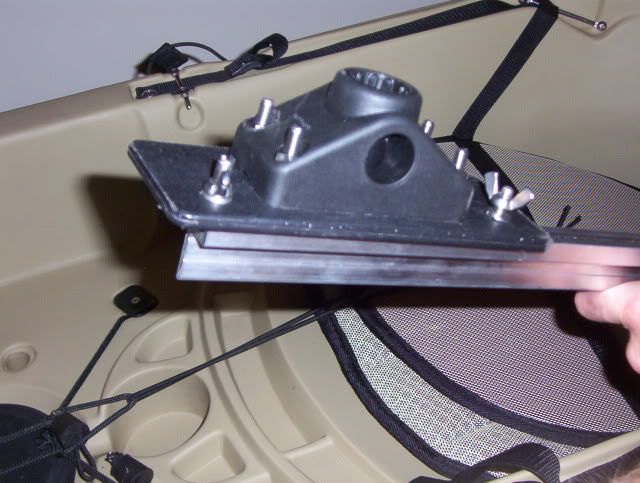

The first thing I did was make a plate to connect the Scotty mount to the T-Loc track using the cutting board. I wanted to make sure my idea would work before drilling holes in the kayak. Here is a cross-section of the assembled set-up. The track accepts 1/4 hex bolts (that is what connects the cutting board plate to the track). I filed the corners of the bolts ever so slightly and this really helps the bolts to slide easily in the groove.
![Image]()
![Image]()

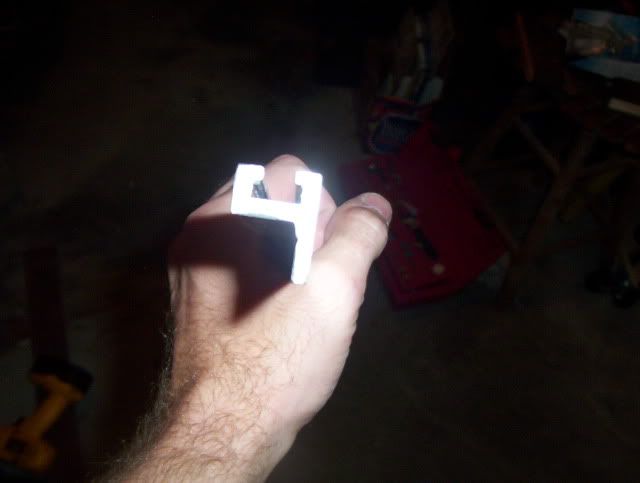

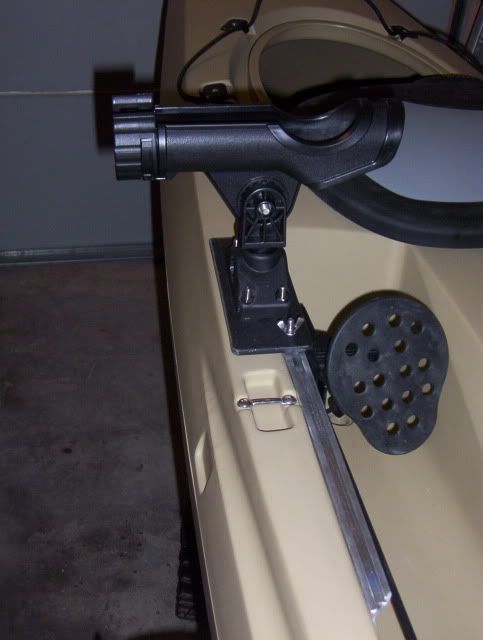

The flat portion of the T-Loc track was too long to fit flush with the gunwales because of the foot rest track. I trimmed off appx 3/8" using my jigsaw. The track is aluminum so it cuts fairly easily.
![Image]()

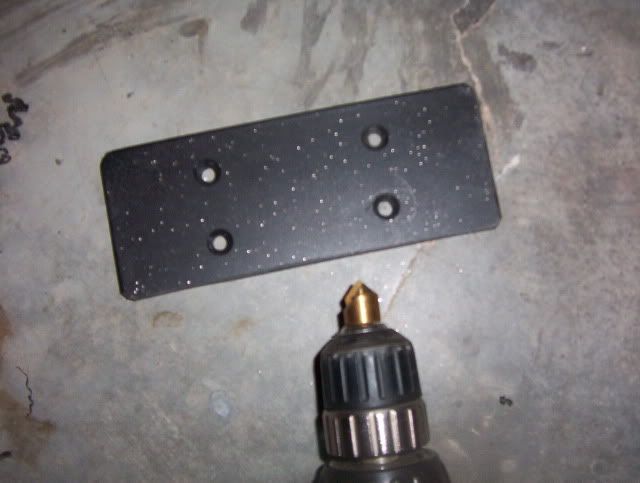

Here is the back side of the cutting board. I used a countersink bit to hollow the cutting board to allow the cone head screws to fit flush.
![Image]()

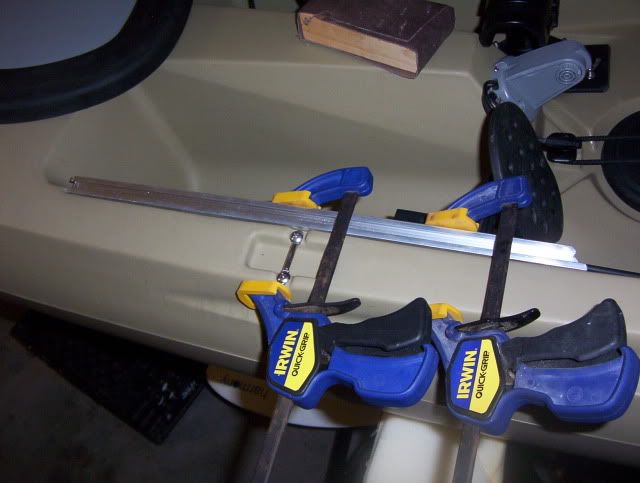

Ok so that all works... time to drill the boat. I drilled four holes on the flat portion of the T-loc track to mount it to the boat. Three would work as far as strength, but there is a molded in area of the gunwale in the way on the Manta Ray. Once the holes on the track were drilled, I used some squeeze clamps to help position the track on the boat.
![Image]()

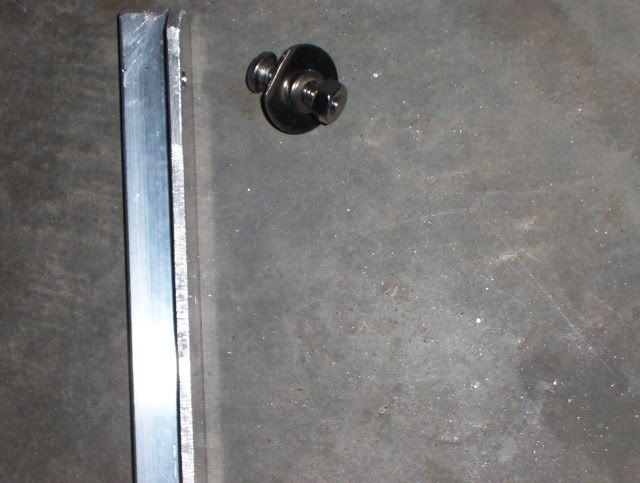

The track is held to the boat with a flat head bolt, fender washer, lock washer and hex nut. I originally tried to used lock nuts, but I had a hard time getting the nut secured all the way. It's a long reach to the farthest bolt inside the hatch!
![Image]()

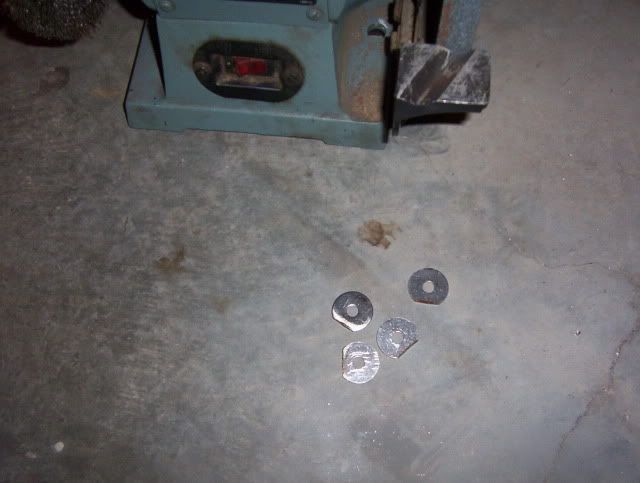

The fender washers needed to be trimmed a little bit so they wouldn't be held off by the rounded area inside the gunwale. I did this with a pair of vise-grip pliers and a bench grinder.
![Image]()
Here is the first assembly of all the parts in place.
![Image]()

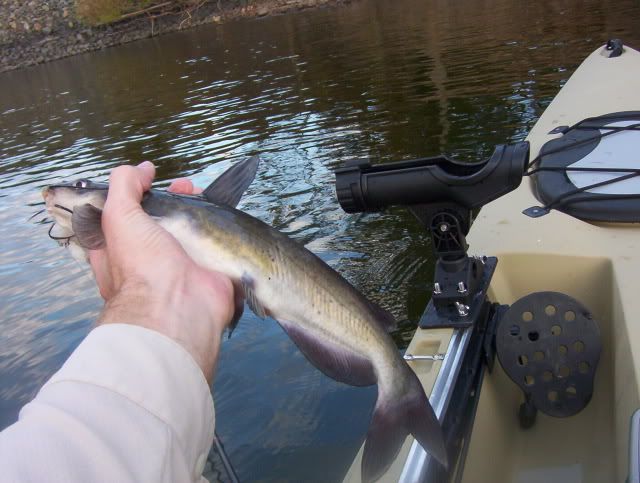

I decided to take the kayak out and make sure everything would work as planned before drilling the other side of the boat. I think it'll work great
![Image]()

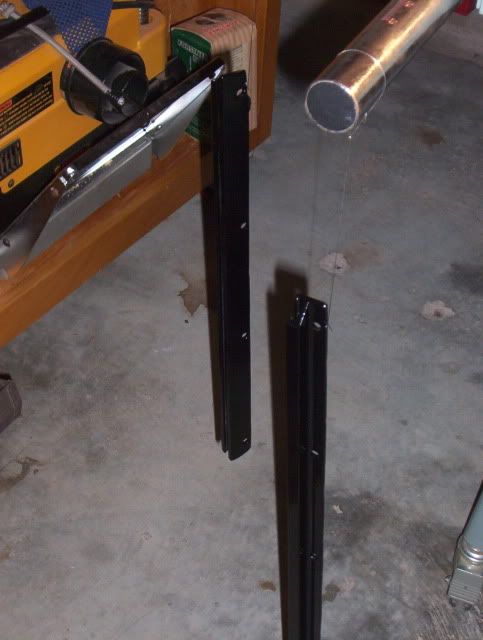

I painted the tracks satin black to match the foot rest tracks. This step is optional, but I didn't want the extra glare from the bare metal. I textured the tracks with the wire wheel on the grinder to help the paint hold. I strung up the tracks with some fishing line to allow all sides to be painted at the same time.
![Image]()

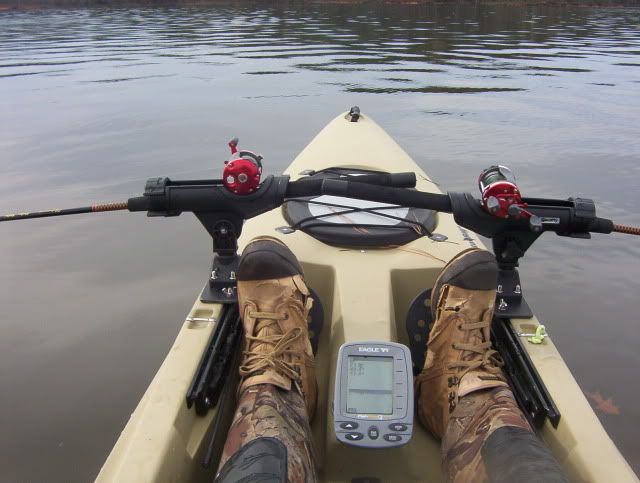

Here is both sides assembled and in action.
![Image]()
Any questions let me know.
